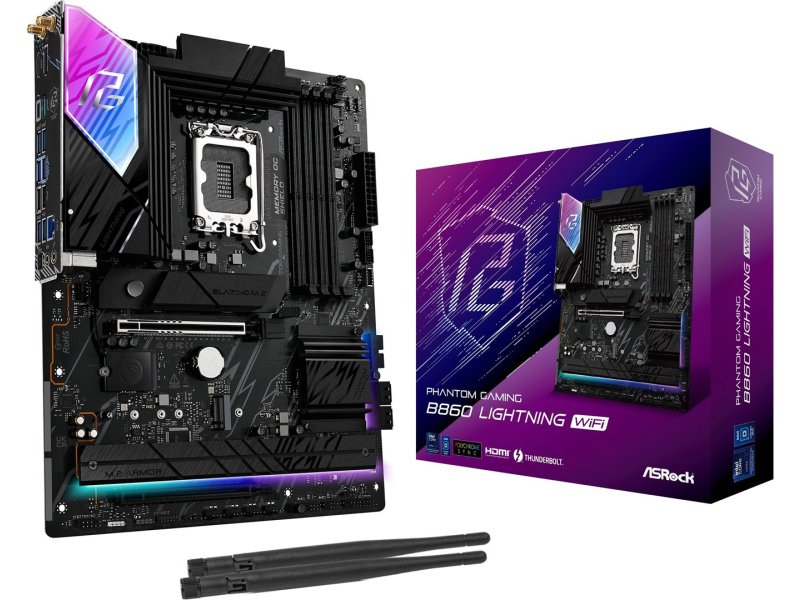

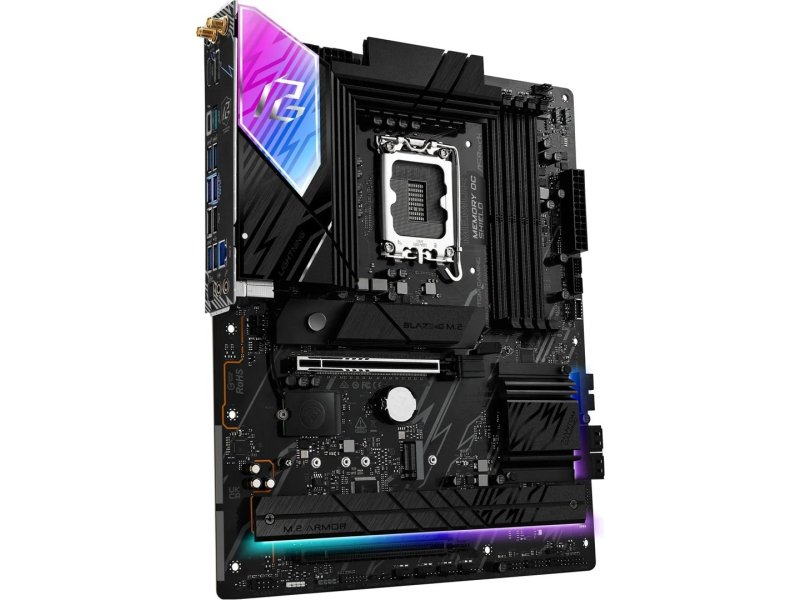

ASRock Płyta główna B860 Lightning WiFi

Product images are
for illustrative purposes only

Dimensions	30.5 x 24.4 cm
Expansion slots	1 x PCIe 5.0 x 16
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Form Factor	ATX
Graphics	Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 1
Software	Software: ASRock Motherboard Utility (Phantom Gaming Tuning) Killer Control Center ASRock Polychrome SYNC UEFI: ASRock EZ Mode ASRock Full HD UEFI
Memory Type	DDR5
CPU Socket	LGA1851
RAID	Yes
Description	B860 LIGHTNING WIFI Supports Intel Core Ultra Processors (Series 2) 14+1+1+1+1 Phase Power Design, 80A Dr.MOS for VCore+GT+SA 4 x DDR5 DIMMs Supports Dual Channel, up to 8933+ (OC) 1 PCIe 5.0 x16,
SOUND CARD	7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio
Model	B860 LIGHTNING WIFI
Supported operating systems	Windows 11
Max Memory Size	256
Chipset type	Intel B860
Memory bus frequency	8933 MHz
External connectors	1 x MIC
Network interface	LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Killer E3100G Supports Killer LAN Software Supports Killer DoubleShot Pro Wireless LAN: 802.11axe Wi-Fi 6E Module Supports IEEE
Special Functions	Superb Productivity PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 Thunderbolt 4 Type-C Port (40 Gb/s) Rock-Solid Durability Server-Grade Low-Loss PCB 14+1+1+1+1 Po
Accessories included	2 x SATA Data Cable 2 x ASRock WiFi 2.4/5/6 GHz Antenna ARGB Splitter Cable Thermistor Cable
Processor family	Intel Core Ultra
Integrated CPU	No
Chipset manufacturer	Intel
Max. number of SATA devices	4
Detailed data on disk/drive interfaces	CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper
USB ports at back panel	9
USB ports on motherboard	9
COM connector / port	No
LPT connector / port	No
Onboard connectors	3 x Addressable LED
FireWire (IEEE 1394)	No
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports	8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports	3
Number of DDR5 slots	4
Designation	CE+WEEE
